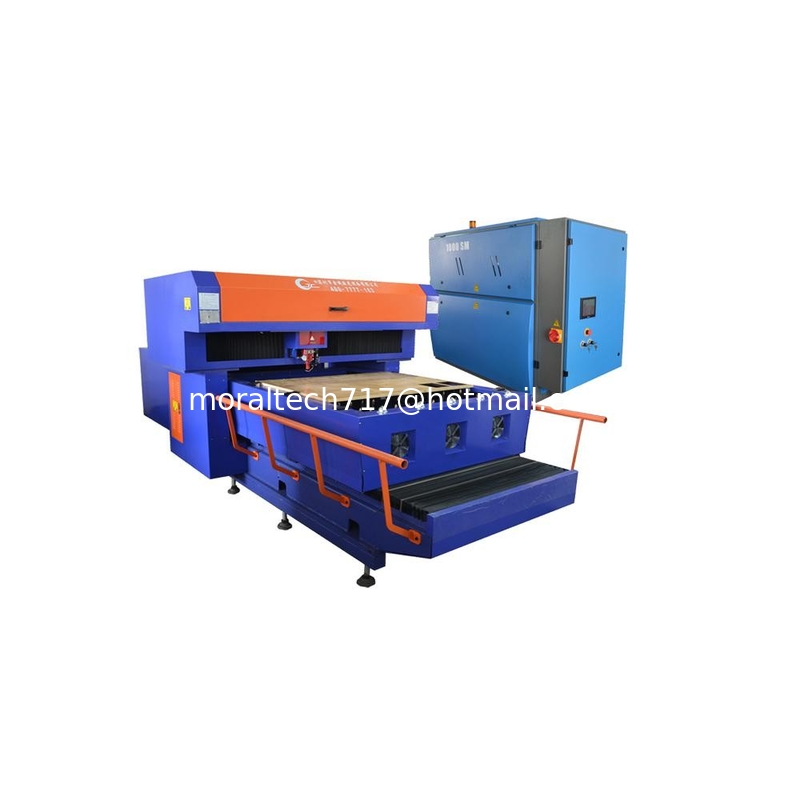

1. 1000W laser generator
2. imported motor passonic service and driver
3. chiller CW 6200
4. Ballscrew
Mian Features :
1.Stable machine design, convenient for operation
2.Laser path ( laser head moving , cutting material plywood fixed)
3.Double direction imported high precision ball-screw transmission
4.Low consumption of voltage, about three kilowatt-hour only
5.High series industrial water chiller, America lens
6.High strength of machine bed, long-year working stable
7.No need of assistant gas during cutting, Air only
8.Laser software, PC control.
9.Easy to adjust laser focus, operate machine easy after training well.
Parameter
|
Processing scale
|
1200*1800mm
|
|
Machine weight
|
2000kg
|
|
Laser type
|
CO2 laser generator
|
|
Laser power
|
1000W
|
|
Driving motor
|
Japanese motors and drivers.
|
|
Cutting depth
|
18mm plywood
|
|
Cutting precision
|
±0.05MM
|
|
Re-position accuracy
|
≤0.03mm
|
|
USB port connection
|
Yes
|
|
Operating temperature
|
0-45°C
|
|
Mould knife thickness
|
0.45mm, 0.71mm,1.05mm…etc. controllable
|
|
Cutting speed
|
23-30meters/hour 18-20mm plywood
|
|
Protective gas
|
Dry and oil-free air
|
|
Power supply
|
single-phase electricity 220V±5% 50HZ 10A
|
|
Numerical control panel
|
LCD screen, light-touched key-press
|
|
Software supported
|
CorelDraw, AutoCAD, Photo Shop
|
|
Graphic format support
|
PLT,DXF,BMP,JPG,GIF,PGN,TIF
|
|
EMS memory
|
attached 64MB memory, can work under off-line condition
|
|
Application
|
Plywood, MDF board, acrylic board.
|
|
Laser tube guarantee
|
Guarantee 1 year( common 3-5years no probem )
|
|
Assistant equipments
|
Air Dryer, industrial chiller, Exhaust Fan, Computer System
|
|
Recommend spare parts
|
Laser Tube and America Lens
|
